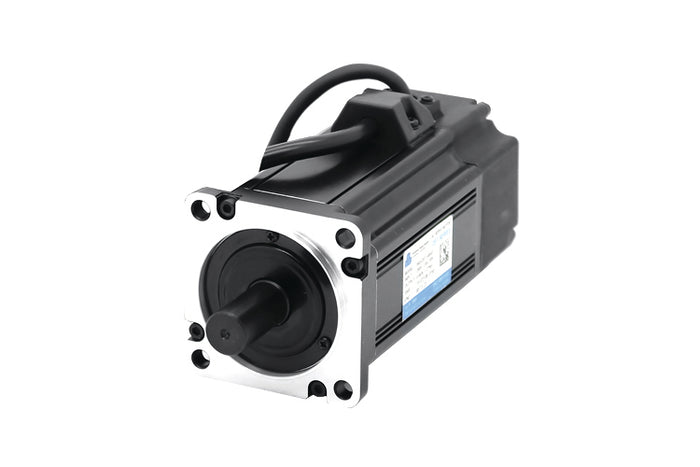

DST 0.2kW AC Servo Motor
60V / With Key / Without Brake
$119.28
Sale price
$119.28
Regular price
$168.00
Skip to product information
DST 0.2kW AC Servo Motor
$119.28
Sale price
$119.28
Regular price
$168.00
Description
0.20kW Low Inertia AC Servo Motor. Voltage class should be selected as 60V version for pair with DYN2 servo drive, or 200V version for pair with DYN4 servo drive.
Please contact us for non-standard inventory options, including oil seal, or custom options.
Documentation:
| DHT/DST Series AC Servomotor |
Motor Specification
| Servo Motor Model | 620-DST-A6 _ _ 1 | |
|---|---|---|
| Rated Output | 0.2kW | |
| Rated Voltage | 60V | 200V |
| Applicable Servo Drive | DYN2 | DYN4 |
| Rated Torque | 0.637Nm | |
| Instantaneous Max. Torque | 1.91Nm | |
| Rated Current | 4.5A | 2.1A |
| Max. Current | 11.3A | 6.5A |
| Rated Speed | 3000rpm | |
| Max. Speed | 5000rpm | |
| Rotor Inertia | 0.232kg-cm^2 | |
| Torque Coefficient | 0.169N∙m/A | 0.312N∙m/A |
| Encoder | 16-bit Absolute [ ABS-16-01 ] | |
| Mass | 1.0kg | |
| Ratings | Time Rating: Continuous Thermal Class: F Excitation Method: Permanent Magnet Insulation Resistance: DC500V, >20MΩ Noise: ≤60dB; No Special Noise |
|
| Environment | Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation |
|
| Enclosure | IP65 | |
| Shock | 98m/s2 Max. (10G) | |
