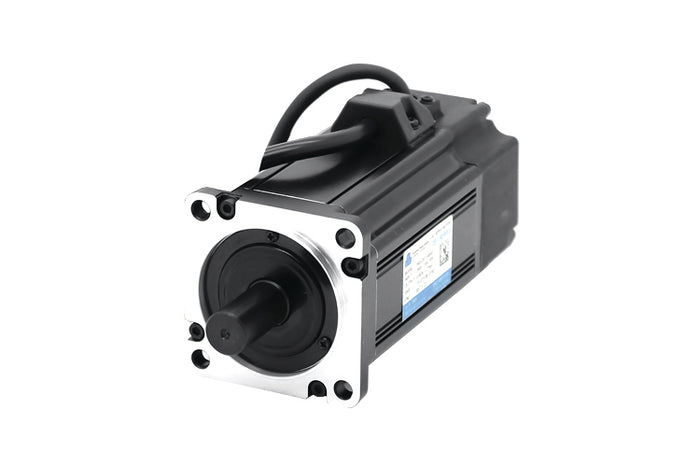

57N-DHT 0.4kW AC Servo Motor
D-Cut 1/4" / With +24VDC Brake
$227.54
Sale price
$227.54
Regular price
$367.00
Skip to product information
57N-DHT 0.4kW AC Servo Motor
$227.54
Sale price
$227.54
Regular price
$367.00
Description

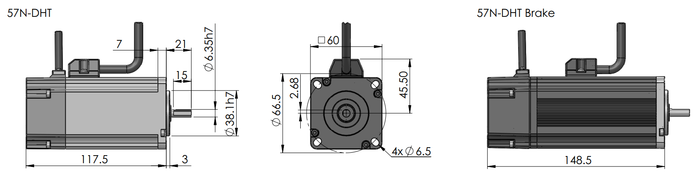

0.40kW NEMA23 motor. Standard NEMA23 mount with 1/4" shaft. Shaft with two flat seats.
Note: This motor is only available as a 60V voltage class for use with DYN2 servo drive. Use with DYN4 servo drive is possible with 110/120VAC input.
Documentation
| DHT/DST Series AC Servomotor |
Motor Specification
| Servo Motor Model | 57N-DHT-A6TD1 |
|---|---|
| Rated Output | 0.4kW |
| Rated Voltage | 60V |
| Applicable Servo Drive | DYN2 / DYN4 |
| Rated Torque | 1.27Nm |
| Instantaneous Max. Torque | 3.82Nm |
| Rated Current | 8.4A |
| Max. Current | 21.0A |
| Rated Speed | 3000rpm |
| Max. Speed | 5000rpm |
| Rotor Inertia | 0.426kg-cm^2 |
| Torque Coefficient | 0.181N∙m/A |
| Encoder | 16-bit Absolute [ ABS-16-01 ] |
| Mass | 1.65kg |
| Ratings | Time Rating: Continuous Thermal Class: F Excitation Method: Permanent Magnet Insulation Resistance: DC500V, >20MΩ Noise: ≤60dB; No Special Noise |
| Environment | Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation |
| Enclosure | IP65 |
| Shock | 98m/s2 Max. (10G) |
